    Home / Industrial Vacuum Pump Systems / MD-Kinney - KT Series Rotary Piston Vacuum Pump

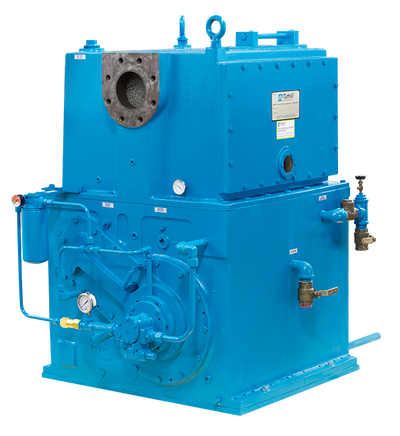

    blue-KT-Series-rotary-piston-vacuum-pump- single-stage
    blue-KT-Series-rotary-piston-vacuum-pump-f

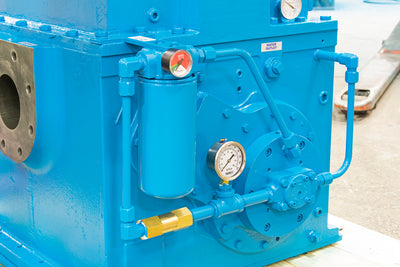

    blue-KT-Series-rotary-piston-pump-for-oil-drying-heat-treating-caotomg-amd-metallurgy
    blue-KT-Series-rotary-piston-vacuum-pump- single-stage
    blue-KT-Series-rotary-piston-vacuum-pump-f
    blue-KT-Series-rotary-piston-pump-for-oil-drying-heat-treating-caotomg-amd-metallurgy

    MD-Kinney

    MD-Kinney - KT Series Rotary Piston Vacuum Pump

    The MD-Kinney KT single-stage rotary piston pump offers high pumping capacity at low pressures and is ideal for dirty applications.

    KT single-stage models include an integral, positive pressure lubrication system to insure reliable lubrication at all pressure levels. KT pumps are water-cooled. Optional air-cooling systems are available. Adjustable gas ballast valves are standard for handling water and other vapor loads. An optional factory-mounted oil filtration system lowers maintenance costs and increases uptime.

    • 150 - 778 CFM
    • 7.5 - 40 HP
    • 11 - 62 CFM
    • 0.010 Torr





    • This product price is available on request only

      Request a Quote
    Need help? Call us:  1 503 639 0808

    Product details

    MD-Kinney- KT-Series Rotary Piston Vacuum Pumps

    • KT single-stage models include an integral, positive pressure lubrication system to insure reliable lubrication at all pressure levels. KT pumps are water-cooled. Optional air-cooling systems are available. Adjustable gas ballast valves are standard for handling water and other vapor loads. An optional factory-mounted oil filtration system lowers maintenance costs and increases uptime. All MD-Kinney rotary piston vacuum pumps offer no metal-to-metal contact between the pump piston and cylinder, and clearances are filled with oil.

      With options between duplex or triplex piston design and air-cooled or water-cooled, you are guaranteed to find a high pumping capacity solution tuned specifically to your operating parameters with the KT, KC, KTC, KD, or KDH line of Kinney rotary piston vacuum pumps.

      Unique features include:

      • Recommended for applications where operating pressure is below 0.1 Torr (0.13 mbar)
      • Achieve lowest possible pressures from mechanical pumps
      • Rugged and reliable
      • No metal-to-metal contact between pump piston & cylinder
        • Clearances are filled with oil
      • Unequaled durability, even in dirty applications

      Applications:

      • Transformer Oil Drying
      • Heat Treating
      • Coating
      • Metallurgy



    •  SERIES Nominal Displacement at Rated RPM (CFM) Motor (HP) Cooling Water @ 60° F(15.5˚C) – 45 psig max (GPM) Oil Capacity (gal) Pump Weight (Lbs.) Maximum Gas Ballast (GB) Flow (CFM) Blank off (at 5% Gas Ballast) (Torr) Ultimate Pressure (Torr) Noise Level at 0.1 Torr (db(A)


      KT-150C

      		 150 7.5 1 6 800 112 0.01071


      KT-300D

      		300 15 1.510 1525 20 2 0.010 72

      KT-500D

      		500 30 3 15 262534  2 0.010 73


      KT-850D

      		778 40 4 28 417562 2  0.01075

    • MD-Kinney Vacuum Pumps & Boosters Line Card



    • MD-Kinney Vacuum Pumps & Boosters Product Brochure

      MD-Kinney Rotary Piston Vacuum Pumps Brochure - English

      MD-Kinney Rotary Piston Vacuum Pump Brochure- Spanish







    Description

    KT single-stage models include an integral, positive pressure lubrication system to insure reliable lubrication at all pressure levels. KT pumps are water-cooled. Optional air-cooling systems are available. Adjustable gas ballast valves are standard for handling water and other vapor loads. An optional factory-mounted oil filtration system lowers maintenance costs and increases uptime. All MD-Kinney rotary piston vacuum pumps offer no metal-to-metal contact between the pump piston and cylinder, and clearances are filled with oil.

    With options between duplex or triplex piston design and air-cooled or water-cooled, you are guaranteed to find a high pumping capacity solution tuned specifically to your operating parameters with the KT, KC, KTC, KD, or KDH line of Kinney rotary piston vacuum pumps.

    Unique features include:

    • Recommended for applications where operating pressure is below 0.1 Torr (0.13 mbar)
    • Achieve lowest possible pressures from mechanical pumps
    • Rugged and reliable
    • No metal-to-metal contact between pump piston & cylinder
      • Clearances are filled with oil
    • Unequaled durability, even in dirty applications

    Applications:

    • Transformer Oil Drying
    • Heat Treating
    • Coating
    • Metallurgy



    Specifications
     SERIES Nominal Displacement at Rated RPM (CFM) Motor (HP) Cooling Water @ 60° F(15.5˚C) – 45 psig max (GPM) Oil Capacity (gal) Pump Weight (Lbs.) Maximum Gas Ballast (GB) Flow (CFM) Blank off (at 5% Gas Ballast) (Torr) Ultimate Pressure (Torr) Noise Level at 0.1 Torr (db(A)


    KT-150C

    		 150 7.5 1 6 800 112 0.01071


    KT-300D

    		300 15 1.510 1525 20 2 0.010 72

    KT-500D

    		500 30 3 15 262534  2 0.010 73


    KT-850D

    		778 40 4 28 417562 2  0.01075
